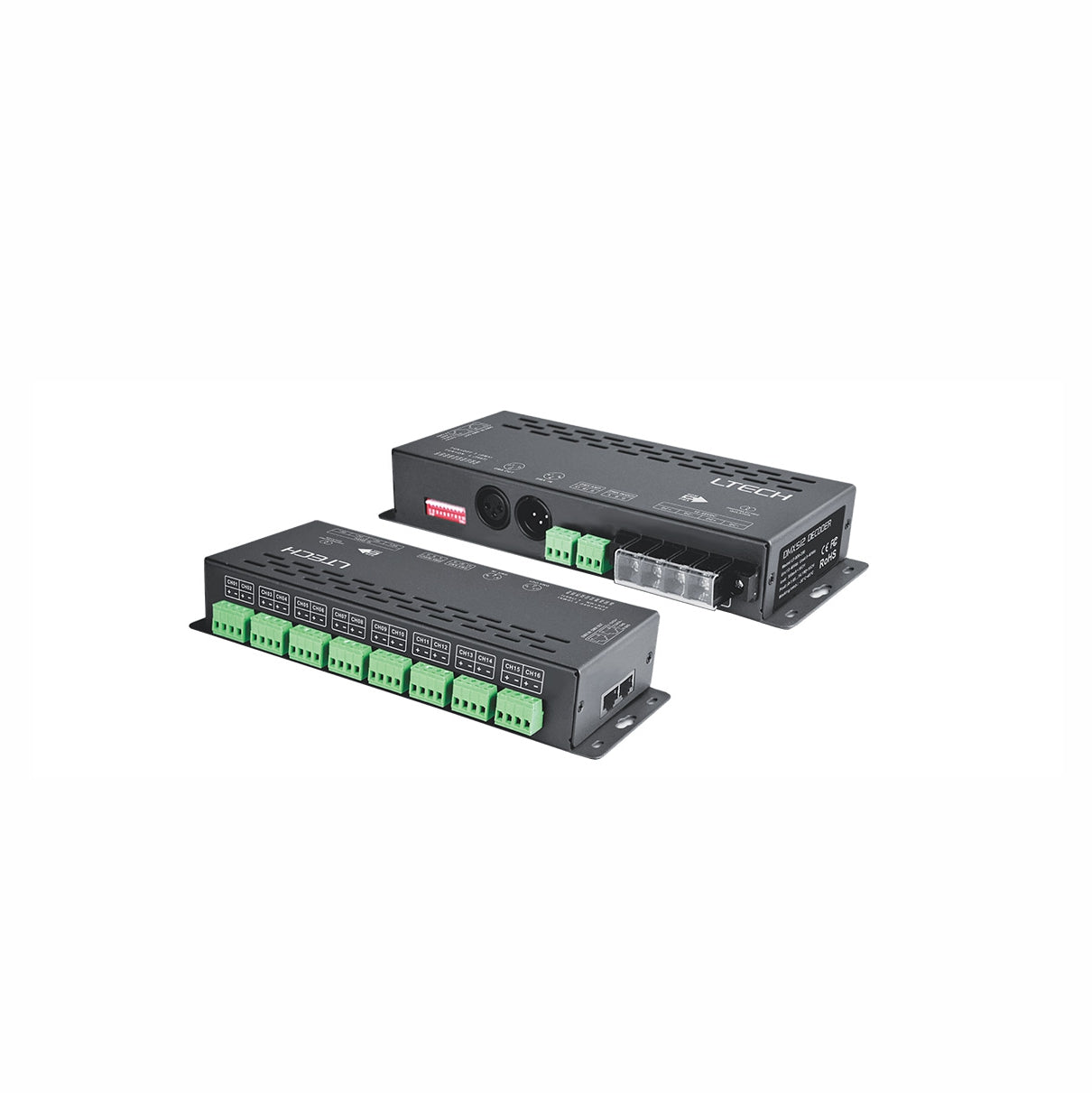

24CH DMX-PWM Decoder LT-880

LT-880 with the standard RDM remote device management protocol supports DMX512 signal bi-directional communication achieves remote management of reading and writing DMX address (DMX master controller must recognize the RDM protocol).
This compact decoder works with DMX512 console. Realize 0-100% brightness and various changing effect. Equipped with DMX standard XLR-3, RJ45 and green terminal interface, easy to operate. And it can control single color, bi-color, RGB LED lights.

LT-880 24CH DMX-PWM Decoder
Input Signal: DMX512
Input Voltage: DC5V～DC24V
Max Load Current :3A ×24CH Max 72A
Max Output Power: 360W/864W/1728W(5V/12V/24V)
DMX512 Socket: RJ45, XLR-3 Green terminal
Dimming Range: 0～100%
Operating Temp.: -30℃～65℃
Product Size: L260×W123×H42(mm)
Package Size: L268×W127×H44(mm)
Weight (G.W.): 885g
